Ultra-compact and seal-type protective structure is JIS infiltration type and IEC IP67 compliant. (Excluding the terminal section)
Can be used at ambient temperature from -40 to 85°C.
Achieves high durability and high contact reliability by using gold alloy crossbar contacts and coil springs.

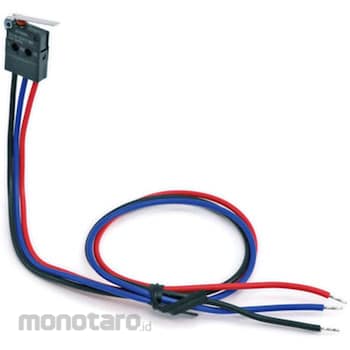

OMRON Sealed Ultra-Small Basic Switch D2JW
#Grup produk P105952565
Spesifikasi
| Rated Voltage (V) | DC30 |
|---|---|
| Withstand Voltage | Between terminals of the same polarity: 600 VAC 50/60 Hz for 1 min Between live metal parts and ground, between each terminal and non-live metal parts: 1000 VAC 50/60 Hz for 1 min |
| Ambient Relative Humidity (RH) | 35 to 98 (at +5 to + 35 ° C) |
| Type of Terminal | With lead wire |
| Allowable Operating Speed (mm to mm/s) | 1 to 250 (in case of pin push button type) |
| Contact Resistance (miliΩ) | 140 or less (initial value) |
| Contact Specifications | Crossbar |
| Electrical Durability | 100,000 times or more (30 times / min) |
| Inrush Current (A) | Normally closed circuit: Max 0.1A, normally open circuit: Max 0.1A |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability (times) | 1,000,000 or more (60 times / min) |
| Minimum Applicable Load (V-mA) | DC5-1 |
| Operating Ambient Temperature (°C) | -40 to +85 60% RH or less (with no icing or condensation) |
| Rating | DC30V 0.1A (resistive load) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Pole ultra-small and sealed type Protective structure is JIS's protection type, IEC IP67 fit. (However, except for the terminal part)
The ambient temperature can be used at -40 to 85°C.
High durability and high contact reliability by adoption of gold alloy crossbar contacts and coil springs.
