Long stroke type body size that can be turned on and off securely, the smallest in the industry, is 78% of the conventional volume, contributing to the miniaturization of mechanical components.
Easy to use long stroke without lever (OT reference value: 1.4mm) .
Environmentally harmful substances are eliminated, and the lead wire type is also lead-free.

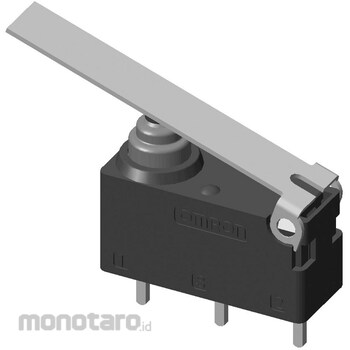

OMRON Sealed Ultra-Small Basic Switch D2HW Hinge/Long Lever Type
#Grup produk P105952468
Spesifikasi
| Type Of Actuator | Hinge / long lever type |
|---|---|
| Protection Class | IEC IP67 (excluding terminals) |
| Allowable Operating Speed (mm to mm/s) | 1 to 500 (in case of pin push button type) |
| Ambient Relative Humidity (RH) | 95 or less (at +5 to + 35 ° C) |
| Rating | DC5V 1mA to DC12V 2A |
| Vibration Resistance (Malfunction) | Frequency 10-55Hz, double amplitude 1.5mm |
| Contact Resistance (miliΩ) | 100 or less (initial value) |
| Contact Specifications | Crossbar |
| Electrical Durability | 100,000 times or more (20 times / min) |
| Impact Resistance Durability (m/s²) | Up to 1000 (operating limit position) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability | 1,000,000 times or more (30 times/min) |
| Minimum Applicable Load (V-mA) | DC5-1 |
| Operating Ambient Temperature (°C) | -40 to +85 60% RH or less (with no icing or condensation) |
| Rated Voltage (V) | DC5/12 |
| Shock Resistance Malfunction (m/s²) | 300 (operating limit position) |
| Withstand Voltage | Between same pole terminals: AC600V + 50 / 60Hz + 1min, between charging metal part and ground, between each terminal and non-charging metal part: AC1500V + 50 / 60Hz + 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Long stroke type that can be turned on/off firmly with industry minimal size, main unit dimensions contribute to 78% of conventional volume ratio and miniaturization of mechanical products. Long stroke specifications that are easy to use without lever (OT reference value: 1.4 mm) .
Eliminates environmental harmful substances and realized lead-free lead-free.
