The surface mount terminal type, which has been made thinner with a seal, contributes to miniaturization of equipment.
Sealing structure equivalent to IP67 (IEC-60529) ensures high contact reliability even in dusty places and around water. * Excluding the terminal.
A series with a grounding terminal that is convenient for electrostatic countermeasures is also available.
The use of a stainless steel spring provides a crisp click feeling.

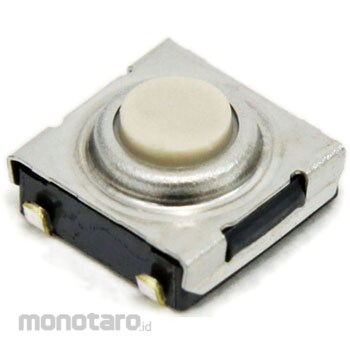

OMRON Sealed Surface Mount Tactile Switch B3SN
#Grup produk P105952343
Spesifikasi
| Withstand Voltage | AC250V 50/60Hz 1min |
|---|---|
| Rating | DC3 ~ 24V + 1 ~ 50mA + Resistive load |
| Bouncing (ms) | 5 or less |
| Type | 6mm square B3W-3000 series |
| Color | (Plunger) Ivory |
| Ambient Relative Humidity (RH) | 35~85 (at +5~+ 35 ° C) |
| Contact Configuration | 1a (normally open contact) |
| Contact Resistance (miliΩ) | 100 or less (initial value) (DC5V 1mA energized) |
| Durability | 100,000 times or more |
| Earth Terminal | None |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC mega) |
| Operating Ambient Temperature (°C) | -25~+70 60% RH or less (no freezing or condensation) |
| Operating Force OF (N) | 1.57±0.49 |
| Pretravel (PT) (mm) | 0.25±0.15 |
| Return Force (N) | Min 0.29 min |
| Shock Resistance (m/s2) | Up to 1000 |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Surface Mount Terminal Types Achieving Thinning by Seal-Type Deviation Contributing to miniaturization of equipment. Seal Structure Equivalent to ip67 (IEC-60529) , ensure high contact reliability even with dusty places and water around water. Except for the terminal part.
Series with a ground terminal that is convenient for electrostatic measures.
By adopting a stainless steel spring, a good click feeling is realized.
