Waterproof connector for FA pursuing reduced man-hours, maintenance and environmental resistance.
Compliant with IP67. Compact connector for FA that achieves 94V-0 flame resistance.
Wiring system connector makes facility maintenance easier and reduces facility downtime.
* Crimp type socket contacts are sold separately.

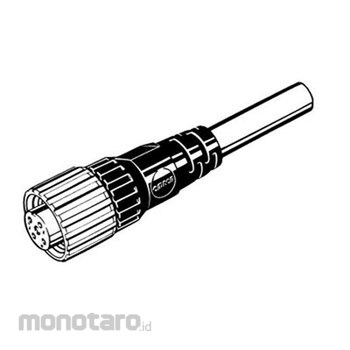

OMRON Round Waterproof Connector (M12) with Cable Socket One Side Connector XS2 Straight
#Grup produk P105951849
Spesifikasi
| Material (O-ring) | Rubber |
|---|---|
| Cable Holding Strength (N/15s) | Outer diameter Φ6: 98, Outer diameter Φ4~Φ5: 49, Outer diameter: Φ3: 29 |
| Color | Contact block: light gray |
| Connector | One side connector |
| Contact Material | Phosphor bronze |
| Contact Resistance (miliΩ) | Connector: 40 or less (20mV or less, 100mA or less) |
| Cover Material | Soft PBT (UL94V-0) |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Operating Humidity Range | 20 to 85%RH |
| Operating Temperature Range (°C) | -25 to +70 |
| Protection Class | IP67(IEC529) |
| Rated Current (A) | 1.5 |
| Tensile Strength (N/s) | Assembly part fixed: 98/15 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
Crimp type socket contact is sold separately.Feature
Waterproof connector for FA that pursues departure and saving maintenance and environmental resistance.Meet IP67. FA-only compact connector that achieves flame retardancy of 94V-0.
Connectorization of wiring systems facilitates equipment maintenance and shortened equipment downtime.
