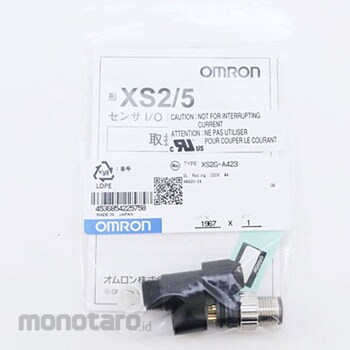

OMRON Round Waterproof Connector (M12) Assembled Connector Plug (Crimp Type/Solder Type) XS2
#Grup produk P105951742
Spesifikasi
| Surface Treatment | Contact/Ni base gold plating 0.4μm Fixture/Ni plating |
|---|---|
| Assembly section fixing Strength | (Tensile) 98N / 15s, (rotation) 0.98Nm / 15s |
| Insulation Resistance (MΩ) | 1000 or more (at 500 VDC) |
| Rated Voltage (V) | AC/DC250V |
| Ambient Humidity (% RH) | 20 to 85 |
| Contact Material | Brass |
| Contact Resistance (miliΩ) | 40 or less (Connector part: 20mV or less, 100mA or less) |
| Material (O-ring) | Rubber |
| Material (Ring) | Steel |
| Operating Temperature Range (°С) | -25 to 70 |
| Protection Class | IP67(IEC529) |
| Rated Current (A) | 4 |
| Type | XS2G |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Material : Contact/brassFixture/brass
Contact block/PBT resin (UL94V-O)
O-ring/rubber
Cover/PBT resin (UL94V-O)
Cap/PBT resin (UL94V-O)
Cable clamp/PA resin (UL94V-O)
Contact clamp/PBT resin (UL94V-O)
Lock spring/LCP resin (UL94V-O)
Waterproof bush/rubber
Ring/steel
