The low-cost rotary dip switch rotor part is sealed with an O-ring to prevent dust from entering.
Easy circuit design.

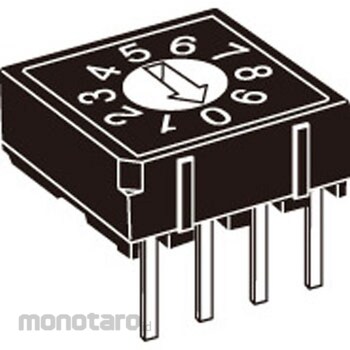

OMRON Rotary Dip Switch (Top Operation) A6R
#Grup produk P105951681
Spesifikasi
| Withstand Voltage | Between terminals: 250 VAC for 1 min |
|---|---|
| Color | (Rotor) white |
| Type of Output Code | Real code |
| Operating Torque (N m) | 1.96x102 |
| Electrical Durability (steps) | More than 5000 |
| Contact Resistance (miliΩ) | 200 or less (initial value) |
| Electrical Rating | 24V DC 25mA, 3.5V DC 10μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 250 VDC) |
| Operating Humidity Range | 35 to 95% RH (at +5 to + 35 ° C) |
| Operating Temperature Range (°С) | -25 to +80 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 300 or more |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Low Cost Type Rotary Dip Switch The rotor part prevents dust penetration by the sealing structure by O-ring.
Easy circuit design.
