Heat generation is reduced by the unique leaf spring mechanism of the power supply rocker switch that emphasizes safety.
The original forced opening mechanism enables contact opening even when contact welding is abnormal.
Prepare neon illumination that can directly apply power supply voltage.
Contact gap 3mm or more.
A wide variety of caps and flanges are available.
Acquired UL, CSA and VDE standards. Compliant with EN standards.

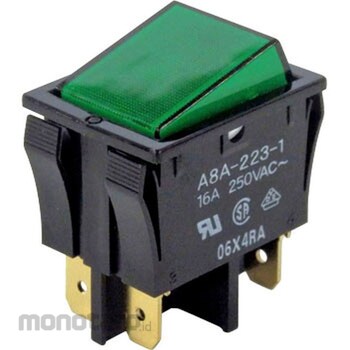

OMRON Rocker Switch A8A
#Grup produk P105951645
Spesifikasi
| Allowable Operating Speed (mm/s) | 1 to 500 |
|---|---|
| Ambient Humidity (% RH) | 45-85 or less |
| Inrush Current (A) | Up to 100 (100 ms or less) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 40,000 times or more |
| PTI (Proof Tracking Index) | 175 |
| Pollution Degree (Environment to Use) | 2 |
| Protection Class | IP40 |
| Shock Resistance (m/s2) | 500 |
| Shock Resistance Malfunction (m/s²) | 300 (2 + malfunction + 1ms or less) |
| Type of Illumination | Neon light |
| Withstand Voltage (V/minute) | Between terminals of the same polarity: 2000 AC 50/60 Hz Between live metal parts and ground: 4000 AC 50/60 Hz |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Safety-oriented power supply locker switch Your unique leaf spring mechanism reduces heat generation.
By unique forced release mechanism, it is possible to open contact open even when abnormal such as contact welding.
Preparation of neon illumination that can apply the power supply voltage directly.
Contact Gap 3mm or more.
Cap, Prepare a wealth of variations in the flange area.
UL, CSA, VDE Standard Acquisition. EN standard compliant.
