Body length 20mm, round body φ12 series.
High brightness and uniform surface illumination.
Drilling is easy due to the round body.
Small and good operation feel.

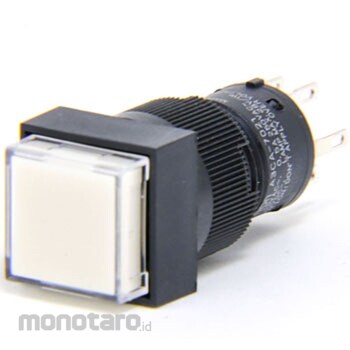

OMRON Pushbutton Switch (Square) (LED) (Round Body φ12) A3C
#Grup produk P105943655
Spesifikasi
| Type | Illuminated |
|---|---|
| Protection Class | IP40 |
| Ambient Humidity to Use | 35 to 85%RH |
| Button Shape | Square |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
| Contact Configuration | 1a1b |
| Impact Resistance Durability (m/s²) | Up to 500 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Light Source | LED |
| Mounting Hole Diameter P (mm) | 12 |
| Operating Ambient Temperature (°C) | -10 to +55 (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | Up to 150 (within malfunction 1ms) |
| Storage Temperature (°C) | -25 to +65 (with no icing or condensation) |
| Terminal Shape | Solder terminal |
| Withstand Voltage | Between homopolar terminals, between lamp terminals (when incandescent lamp and LED lamp are not mounted): AC2500V 50 / 60Hz 1min / Dipolar terminal, between each terminal and ground: AC2000V 50 / 60Hz 1min |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Torso length 20 mm, round body type φ12 series. Uniform light light with high brightness.
Easy drilling for round body shapes.
Achieves a small and good operation feel.
