Built-in V-type micro switch for business/consumer equipment.
In addition to momentary operation, a lock type is also available.
6 types of operation section colors are available.
A good feel is realized by the built-in micro switch.

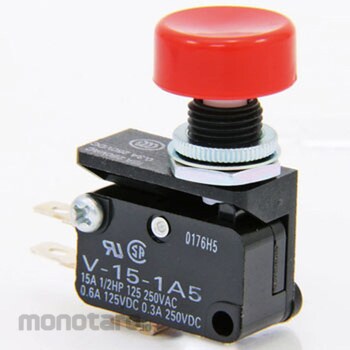

OMRON Pushbutton Switch (Round Body φ10.5) VAQ
#Grup produk P105943415
Spesifikasi
| Withstand Voltage | Between homopolar terminals: 1000 VAC 50/60 Hz for 1 min / between charged metal parts and ground, Between each terminal and non-charged metal parts: 1500 VAC 50/60 Hz for 1 min |
|---|---|
| Ambient Relative Humidity (RH) | 35 to 85 |
| Allowable Operation Frequency (times/minute) | Mechanical: 120 max., Electrical: 20 |
| Button Shape | Round |
| Contact Configuration | 1c |
| Contact Resistance (miliΩ) | 30 or less (initial value) |
| Electrical Durability | 100,000 times or more |
| Impact Resistance Durability (m/s²) | Up to 500 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Mechanical Durability | 3 million times or more |
| Mounting Hole Diameter P (mm) | 10.5 |
| Operating Ambient Temperature (°C) | -25 to +80 (with no icing or condensation) |
| Protection Class | IP00 |
| Shock Resistance Malfunction (m/s²) | Up to 200 |
| Storage Temperature (°C) | -25 to +80 (with no icing or condensation) |
| Vibration Resistance (Malfunction) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Built-in V micro switch and supports business and consumer equipment. In addition to the momentary operation, the lock type is also prepared.
Six types of operating parts are available.
A good feeling is realized by the built-in microscope.
