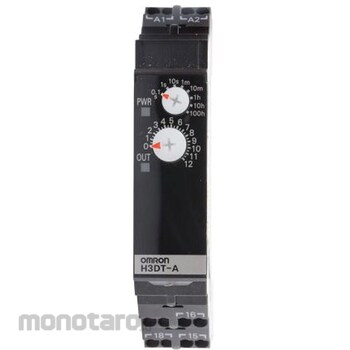

OMRON Power-On Delay Timer H3dt-A
#Grup produk P105942850
Spesifikasi
| Time | 0.1 seconds to 100 hours |
|---|---|
| Series | H3DT |
| Length (mm) | 17.5 |
| Width (mm) | 90 |
| Number of Contacts | 2 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Contact Configuration | SPDT |
| Maximum Current (A) | 5 |
| Maximum Voltage (V) | DC30, AC250 |
| Number of timers | Single |
| Operation Mode | Power on delay |
| Output Type | Relay 1c |
| Power Supply | Outside |
| Power Supply Voltage (V) | AC/DC24 to 240 |
| Terminal Type | Screw |
| Type of Terminal Fitting | DIN rail mounting |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
17.5mm width. Push-in Plus terminal block type.
Feature
17.5mm width. Push-in Plus terminal block type. Specification : H3DT-A On-Delay Timer. Solid-state Timer delay relay with push-in Plus technology is for in-panel applications. The slim design makes it ideal for space-saving applications and reduces work on the Control panel. This Timer can reduce Power Consumption by.
Specification : H3DT-A On-Delay Timer. Solid-state Timer delay relay with push-in Plus technology is for in-panel applications. The slim design makes it ideal for space-saving applications and reduces work on the Control panel. This Timer can reduce Power Consumption by
