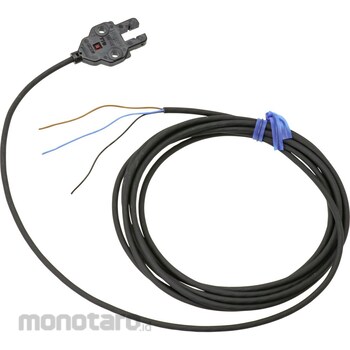

OMRON Photo/Microsensor Groove Cord Drawer Type (DC Light) EE-SX77
#Grup produk P105940597
Spesifikasi
| Protection Class | IEC standard IP60 |
|---|---|
| Vibration Resistance (Destruction) | 20 to 2000Hz (peak acceleration 100m/s2) Double amplitude 1.5mm X, Y, Z directions 2h (4min cycle) |
| Ambient Illumination to Use (Lx) | Light receiving surface illuminance fluorescent lamp: 1000 or less |
| Ambient Humidity (% RH) | Operating: 5 to 85, Storage: 5 to 95 (with no condensation) |
| Ambient Temperature (°C) | Operating: -25 to +55 Storage: -30 to +80 (no freezing) |
| Cable Length (m) | 2 |
| Case Material | Polybutylene terephthalate (PBT) |
| Current Consumption (mA) | 35 or less |
| Detection Distance (mm) | 0-5mm (groove width) |
| Detection Method | Transmission Type |
| Differential Distance (mm) | 0.025 |
| Emitting Element | GaAs infrared light emitting diode |
| Operation Mode | ON when light is blocked |
| Power Supply Voltage (V) | DC5-24 ± 10%, ripple (pp) 10% or less |
| Response Frequency (Hz) | 1k or more (average value is 3k) |
| Standard Sensing Object (mm) | Opaque body 2 x 0.8 mm or more |
| Type of Connection | Cord drawer Type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Small and thin type that inherits ease of use as it is Small and thin, can be mounted closely The indicator power supply voltage that can be seen from both sides is 5 to 24 VDC Wide range
Feature
Small and thin type type that inherited the ease of use as it is small, thin, thin, adhesion is possible.Ulasan Produk
