Printed circuit board terminal block ideal for control equipment interface.
Terminal block for miniaturization of control equipment.
The connection terminal screw has a finger protection structure.
Wires can be connected directly by a clamping method that does not require crimp terminals, greatly reducing man-hours.
Adopting a unique wire crimp structure that does not apply direct force to the soldering part of the board.
Compliant with VDE/IEC standards.
UL standard certified products are standard products.

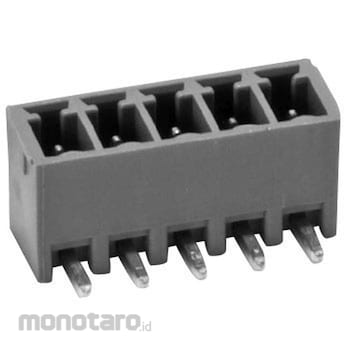

OMRON PCB Terminal Block XW4A (Board Side, Plug, L-Shaped Terminal)
#Grup produk P105940515
Spesifikasi
| Suitable Circuit Board Thickness (mm) | 1.6 |
|---|---|
| Insulation Resistance (MΩ) | 100 or more (DC500V) |
| Length (mm) | Wire stripping length: 7 ± 1 |
| Material (Contactor) | Copper alloy |
| Operating Ambient Temperature (°C) | -40 to +100 |
| Processing (Contact) | Nickel base tin plating (5 μm) |
| Shape | Connector terminal block |
| Standard | RoHS Directive, UL Standard (File No. E245101), VDE / IEC Standard, CSA Standard |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
A printed circuit board for printed circuit boards suitable for control equipment interfaces. A terminal block corresponding to miniaturization of control equipment.
Connected terminal screw portion is a finger protect structure.
Direct wires can be connected directly with a crimp pin without a crimp terminal.
Adoption of a unique wire crimp structure that does not have a direct force on the substrate soldering area.
Compliance with VDE/IEC standard.
UL standard certified products are standard products.
