General-purpose original plug suitable for a wide range of applications Can be used widely as various socket mating plugs.
Examples of compatible socket connectors: XG4M flat cable connector, XG5 loose wire pressure contact through hole diameter Ø0.8.
The double-row type L-type terminal plug uses a block-type base for improved workability during soldering and can be easily locked using a simple lock lever (except for the XG8W straight) .
Polarization cut is possible (excluding XG8W L type) .

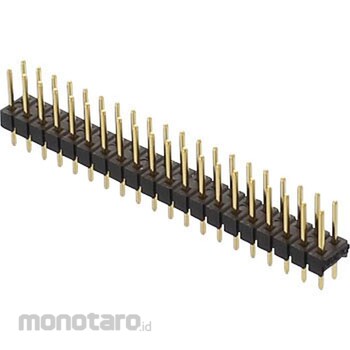

OMRON Original Plug (For MIL Connector) XG8W
#Grup produk P105940436
Spesifikasi
| Rated Voltage (V) | AC300 |
|---|---|
| Contact Resistance (miliΩ) | 20 or less (20 mV or less, 100 mA or less) Value when mated with XG5M-N |
| Material (Contact Connection Part) | Brass |
| Material (Contact Terminal Pressure Connection Part) | Brass |
| Material (Foot Plate) | Glass-filled PBT resin (UL94V-0) / Black |
| Operating Ambient Temperature (°C) | -55 to +105 (no freezing at low temperatures) |
| Processing (Contact Connection Part) | Nickel base gold plating (0.15 μm) |
| Processing (Contact Terminal Pressure Connection Part) | Nickel base tin plating (2.0 μm) |
| Suitable Sockets | Type XG4M (flat cable connector: socket), type XG4G (board / board connector: socket), type XG5M (loose wire crimping connector), type XG5M-N (loose wire pressure wire connector: 2-row socket) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
General purpose original plug that matches a wide range of applicationsVarious socket can be used widely as a combination plug.
Compatible Socket Connector Example ... Shape XG4M Flat Cable Connector, Shape XG5 Ray Wire Pressure Connector
Supports through hole diameter Ø0.8.
Two-column type L-shaped terminal plugs improve the workability at the time of soldering due to block-shaped base adoption, and can use a simple lock lever to easily lock (except for XG8W straight) .
Polarization cut is possible (except for XG8W L type) .
