Corresponds to environmental conservation by eliminating the use of lead.
Additional acquisition of VDE standard (Germany) and IMQ standard (Italy) .
By changing the color of the AC/DC coil tape, the identification of the AC/DC specification is improved.
OMRON Mini Power Relay MY4Z
#Grup produk P105939379
Spesifikasi
| Contact Configuration | 4c |
|---|---|
| Terminal Shape | Plug-in terminal |
| Type | Relay for control panel |
| Ambient Relative Humidity (RH) | 5 to 85 |
| CR Circuit | None |
| Classification | Built-in operation indicator |
| Contact Resistance (miliΩ) | 100 or less (DC5V 1A voltage drop method) |
| Impact Resistance Durability (m/s²) | 1000 |
| Insulation Resistance (MΩ) | 100 or more (measured with the DC500V insulation resistance meter at the same location as the withstand voltage) |
| Number of Pins | 14 |
| Number of Poles | 4 |
| Operating Ambient Temperature (°C) | -25 to 70 (no freezing or condensation) |
| Operating Voltage (%) | 80 or less |

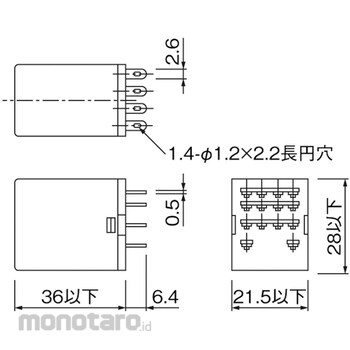

| Outer Dimensions, Width W x Depth D x Height H (mm) | 21.5 or less x 28 or less x 36 or less |
| Rated Voltage (V) | AC 200/220 |
| Return Voltage (%) | 30 or more |
| Type of Connection | Standard type |
| Vibration Resistance (Destruction) | 10 to 55 to 10 Hz, single amplitude 0.5 mm (double amplitude 1.0 mm) |
| With or Without Diode | None |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Eliminate the use of lead and support environmental protection. VDE Standard (Germany) , IMQ Standard (Italy) is added.
By changing the color of the coil tape of AC/DC, improvement of the identification of AC/DC specifications.
