High reliability and low price are realized at the same time by adopting MIL standard compliant product new productivity design as the core of printed circuit board connector.
Compliant with MIL standard (MIL-C-83503) .

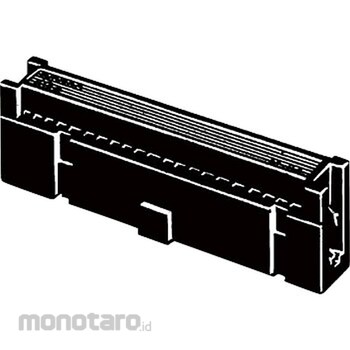

OMRON Flat Cable Connector (Regular-Use Type) XG4 MIL Type Socket
#Grup produk P105936433
Spesifikasi
| Suitable Wire (mm) | 1.27 pitch flat cable AWG28 (7 strands) |
|---|---|
| Rated Voltage (V) | 250 |
| Total Insertion Force (N) | Number of poles x 1.96 or less |
| Applicable Standard | MIL standard (MIL-C-83503) / UL standard (File No. E103202) certified / RoHS compliant |
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Cover Material | Glass-filled PBT resin (UL94V-0) / Black |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Material (Contact Connection Part) | Phosphor bronze |
| Material (Contact Terminal Pressure Connection Part) | Phosphor bronze |
| Material (Housing) | Glass-filled PBT resin (UL94V-0) / Black |
| Operating Temperature Range (°С) | -55 to +105 (no freezing at low temperatures) |
| Rated Current (A) | 1 |
| Terminal Connection | Crimping |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Core of printed circuit board connector, MIL standard complianceRecruitment of new productivity designs simultaneously with high reliability and low price.
Compliant with the MIL standard (MIL-C-83503) .
