D-sub connector ideal for OA equipment interface
EMI shielded connector.
Effective noise countermeasures are realized by using a metallized plastic hood.
Small and robust type with metal shell.
Various fixings and grounding fixtures are available.

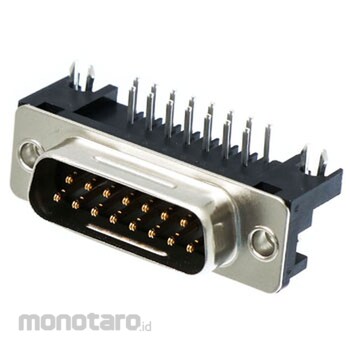

OMRON D-Sub Connector Plug Dip L-Shaped Terminal XM3C
#Grup produk P105935735
Spesifikasi
| Rated Voltage (V) | AC300 |
|---|---|
| Processing (Shell) | Nickel plating |
| Terminal Shape | Dip L-Shaped Terminal |
| Insertion / Removal Durability (Times) | 200 |
| Operating Temperature Range (°С) | -55 to +105 (no freezing at low temperatures) |
| Contact Material | (Contact area) Phosphor bronze/nickel base, gold plating (Terminal area) Phosphor bronze/nickel base, tin plating |
| Contact Resistance (miliΩ) | 15 or less (20mV or less, 100mA or less) |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Material (Housing) | PBT resin (UL94V-0) / black |
| Material (Shell) | steel |
| Shape | Plug |
| Withstand Voltage (V/minute) | AC1000 (leakage Current 1mA or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
D-Subconectors for OA Equipment Optimal D Subconectors Shield Connectors for EMI Measures.
Metallized Processing Achieves effective noise measures by using plastic food.
Metal shell with a small robust type.
Preparation of various fasteners and earth brackets.
