Eliminates the hassle of connecting loose wires.
IDC socket connector that mates with MIL type plug
High reliability, large current (3A) loose wire pressure welding connection is realized by adopting a 2-slot pressure welding structure and an insulation barrel.
By using a wide variety of covers, it is possible to securely hold space-saving wiring or loose wires.
The original simple lock lever enables locking with the original plug and box plug.
UL standards are standard.

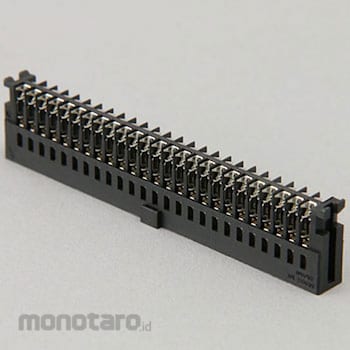

OMRON Discrete Wire IDC Connector XG5 Double Row Socket
#Grup produk P105935595
Spesifikasi
| Rated Voltage (V) | AC300 |
|---|---|
| Contact Resistance (miliΩ) | 20 or less (20mV or less, 100mA or less) |
| Insertion / Removal Durability (Times) | 50 |
| Insulation Resistance (MΩ) | 103 or more (at 500 VDC) |
| Material (Housing) | Glass-filled PBT resin (UL94V-0) / Black |
| Single Removal Force (N) | 0.29 or more (with □ 0.64mm test gauge) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Eliminate the rose wire connection. MIL Type Plug Conjugated Pressure Writing Socket Connectors
2 Slot Conversion Structure, High Reliability, Large Current (3A) Rose Wire Pressure Connection Connection of Insulation Barrel.
By using rich coveres, space saving wiring or rose lines can be reliably held.
A unique simplified lock lever allows the original plug and box plug and lock.
The UL standard is standard.
