Realizing high contact reliability with the knife edge structure The contact reliability is improved by increasing the contact pressure with the knife edge structure.
The knife edge structure allows cleaning without sealing tape.
Heat resistance is further improved by adopting high heat resistance resin. (Soldering peak temperature: 265 °C)

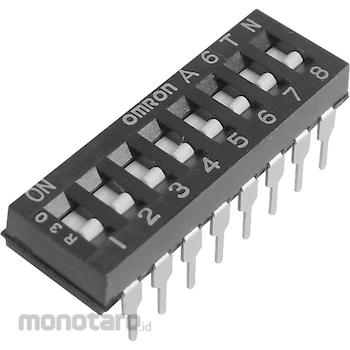

OMRON DIP Switch A6TN
#Grup produk P105935577
Spesifikasi
| Withstand Voltage | Between terminals: 300 VAC 1 min |
|---|---|
| Color | (Strike) White |
| Electrical Durability (times) | 1000 or more |
| Contact Resistance (miliΩ) | 200 or less (initial value) |
| Electrical Rating | 24V DC 25mA, 3.5V DC 10μA (minimum current) |
| Insulation Resistance (MΩ) | 100 or more (at 100 VDC) |
| Operating Force (N) | 0.98 to 7.9 |
| Operating Humidity Range (%RH) | 35 to 95 (at +5 to + 35 ° C) |
| Operating Temperature Range (°C) | -30 to +85 60% RH or less (with no icing or condensation) |
| Shock Resistance Malfunction (m/s²) | 490 or more |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Realizing High Contact Reliability by Naif Edge Structure. Cleaning is possible without seal tape due to knife edge structure.
Heat-resistant resin adoption is further improved. (Soldering peak temperature: 265°C)
