Informasi Produk
Description

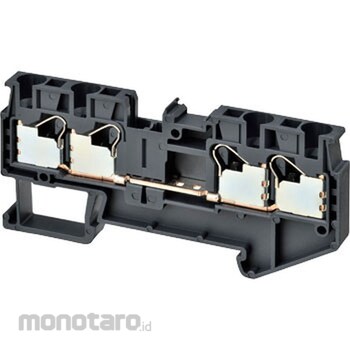

Push-in Plus terminal block.
It is easy to insert and hard to pull out as if it were inserted into an earphone jack.
Two-handed work can be done by the driver holding mechanism.
Space-saving with a minimum width of 3.5mm.
Contributes to miniaturization of control panels.
It is easy to insert and hard to pull out as if it were inserted into an earphone jack.
Two-handed work can be done by the driver holding mechanism.
Space-saving with a minimum width of 3.5mm.
Contributes to miniaturization of control panels.
Feature
Push In Plus Terminal Statement.It is easy to insert and remove it with a sense of inserting it into the earphone jack.
Double hand work can be performed by the driver retention mechanism.
Space saving at a minimum width of 3.5 mm.
Contributing to the miniaturization of the control panel.
Suitable Wire (mm sup>2) : (Nominal cross section) 4.0, (single Wire minimum cross section) 0.2, (single Wire maximum area) 6.0, (twisted Wire minimum cross section) 0.2, (twisted Wire maximum cross section) 4.0, (twisted Wire minimum cross section with ferrule terminal) 0.25, (Maximum cross-sectional area of stranded Wire with ferrule terminal) 4.0
