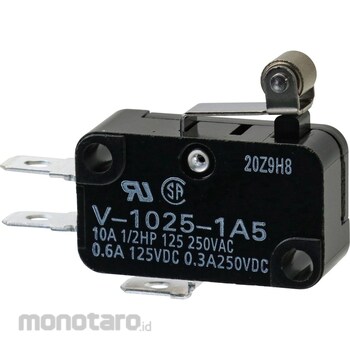

OMRON Compact Basic Switch V
#Grup produk P105933454
Spesifikasi
| Protection Class | IEC IP40 |
|---|---|
| Contact Specifications | rivet |
| Allowable Operating Speed (mm-m/s) | 0.1 to 1 (Pin pushbutton type) |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Electric Shock Protection Class | Class I |
| Heat Resistance Temperature (°С) | 105 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V insulation resistance meter) |
| Mechanical Durability (times) | 50 million operations or more (60 operations / min) |
| Minimum Applicable Load (V-mA) | DC 5-160 (reference value) |
| Operating Humidity Range (%RH) | 85 or less (at 5 to 35 ° C) |
| Operating Temperature Range (°С) | -25 to + 105 + 60% RH or less (however, no freezing or condensation) |
| PTI (Proof Tracking Index) | 175 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Thermosetting case V-15/V-10 type Can be used for current interruption when opening and closing the door
Feature
Thermal Curchable Case Form V-15/Form V-10 TypeUse
Can be used for applications such as cutting off current when opening and closing doorsUlasan Produk
