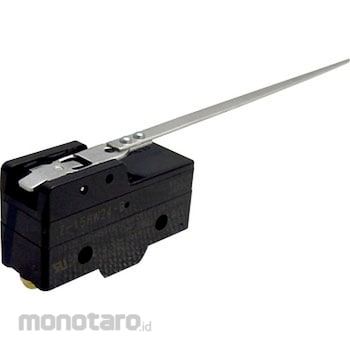

OMRON Basic Switch for General Use Z Standard Type
#Grup produk P105932996
Spesifikasi
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
|---|---|
| PTI (tracking characteristics) | 175 |
| Mechanical Durability (times) | Over 20 million |
| Allowable Operating Speed (mm-m/s) | 0.01 to 1 |
| Type Of Actuator | Small force hinge lever type |
| Mass (g) | 35 |
| Actuator Type | Small force hinge/lever type |
| Allowable Operation Frequency (times/minute) | (mechanical) 240, (electrical) 20 |
| Ambient Humidity (%RH) | 35 to 85 |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Contact Material | Silver |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Contact Spacing (mm) | 0.25 (high sensitivity, for small loads) |
| Contact Specifications | rivet |
| Dimensions (HxWxD) (mm) | 39x49.2x17.45 |
| Electric Shock Protection Class | Class I |
| Electrical Durability (times) | More than 500,000 |
| Force Required for Operation (OF) (N) | Maximum 58.8m |
| Impact Resistance Durability (m/s²) | Max 1000 |
| Inrush Current (A) | Always (maximum) Closed Circuit/30, Open Circuit/15 |
| Lead Wire | VSF |
| Operating Ambient Temperature (°C) | -25 to 80 (but no freezing) |
| Protection Class | General type (IP00) |
| Rated Current (A) | 15 |
| Shock Resistance Malfunction (m/s²) | Maximum 300 |
| Type | Z-15HW24-B |
| Type of Terminal | Screw terminal (internal tooth washer) |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm (malfunction within 1ms) |
| Vibration Resistance Malfunction (m/s²) | 300 (malfunction within 1ms) |
| Withstand Voltage | (Between same pole terminals) AC600V 50/60Hz 1min, (between charging metal part and ground, between each terminal and non-charging metal part) AC2000V 50/60Hz 1min |
