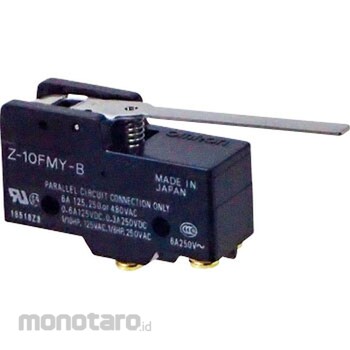

OMRON Basic Switch for General Use Z Split Contact Type
#Grup produk P105932978
Spesifikasi
| Mechanical Durability (times) | 500,000 or more (for push button type) |
|---|---|
| Shock Resistance Malfunction (m/s²) | Maximum 300 (the value of the form Z-10FY-B) (within malfunction 1 ms) |
| PTI (tracking characteristics) | 175 |
| Allowable Operating Speed (mm-m/s) | 0.01 to 1 |
| Vibration Resistance (Malfunction) | 10~55Hz double amplitude 1.5mm (malfunction within 1ms) |
| Protection Class | general form |
| Allowable Operation Frequency (times/minute) | Mechanical: 240, Electrical: 20 |
| Ambient Humidity (%RH) | 35 to 85 or less |
| Ambient Relative Humidity (RH) | 35-85 or less |
| Contact Material | Silver |
| Contact Resistance (miliΩ) | 25 or less (initial value) |
| Contact Spacing (mm) | 1 (high capacity) |
| Contact Specifications | rivet |
| Electric Shock Protection Class | Class I |
| Electrical Durability | 100,000 times or more |
| Electrical Durability (times) | More than 100,000 |
| Impact Resistance Durability (m/s²) | Max 1000 |
| Inrush Current (A) | (Always closed) Max. 40, (Always open) Max. 20 |
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
| Operating Ambient Temperature (°C) | -25 to +80 (no freezing) |
| PTI (Proof Tracking Index) | 175 |
| Rated Voltage (V) | AC125, 250, DC30, 125, 250 |
| Structure | Split contact type |
| Type of Terminal | Screw terminal (Internal tooth washer) |
| Withstand Voltage | Between terminals of the same polarity: AC1500V 50/60Hz 1min Between live metal parts and ground, between each terminal and non-current live metal parts: AC2000V 50/60Hz 1min |
