Large cutoff capacity of 15A and high accuracy. (Repeatability is good)
Basic type of micro switch.

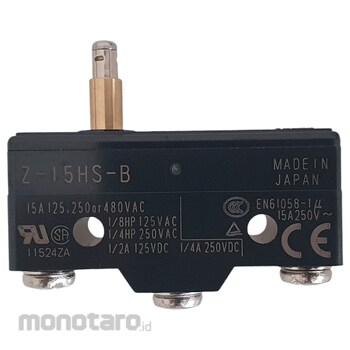

OMRON Basic Switch for General Purpose Z Standard Type Spring Thin Push Button
#Grup produk P105932932
Spesifikasi
| PTI (tracking characteristics) | 175 |
|---|---|
| Allowable Operating Speed (mm-m/s) | 0.01 to 1 |
| Shock Resistance Malfunction (m/s²) | 300 (malfunction within 1ms) |
| Actuator Type | Spring thin push button Type |
| Ambient Humidity (%RH) | 35 to 85 |
| Ambient Relative Humidity (RH) | 35 to 85 |
| Applicable Standard | UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
| Compatible Standards | UL, CSA, TUV (EN61058-1), CCC (GB14048.5) |
| Contact Configuration | 1c |
| Contact Material | Silver |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Contact Specifications | rivet |
| Dimensions (HxWxD) (mm) | 37.4x49.2x17.45 |
| Electric Shock Protection Class | Class I |
| Impact Resistance Durability (m/s²) | Max 1000 |
| Inrush Current (A) | Always (maximum) Closed Circuit/30, Open Circuit/15 |
| Insulation Resistance (MΩ) | 100 or more (at DC500V megger) |
| Lead Wire | VSF |
| Operating Ambient Temperature (°C) | -25 to 80 (but no freezing) |
| Rated Current (A) | 15 |
| Rated Voltage (V) | AC125, 250, 500, DC8, 14, 30, 125, 250 |
| Type Of Actuator | Spring thin push button type |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Suspended capacity is large and high, and high accuracy. (Repeated accuracy is good) Microswitch basic type.
