Large cutoff capacity of 15A and high accuracy. (Repeatability is good)
Basic type of micro switch.
OMRON Basic Switch for General Purpose Z Standard Type Panel Mounting Roller Push Button
#Grup produk P105932695
Spesifikasi

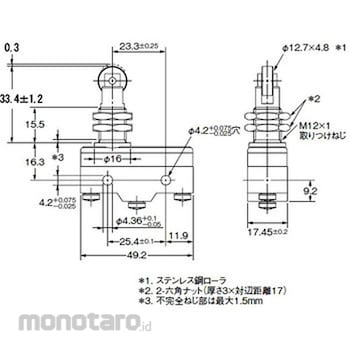

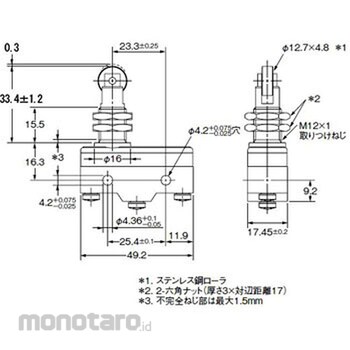

| Dimensions (HxWxD) (mm) | 58.9x49.2x17.45 |
|---|---|
| Impact Resistance Durability (m/s²) | Up to 1000 |
| Type Of Actuator | Panel mounting roller push button type |
| Applicable Standard | UL, CSA, TUV(EN61058-1), CCC(GB14048.5) |
| Contact Configuration | 1c |
| Contact Resistance (miliΩ) | 15 or less (initial value) |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Shock Resistance Malfunction (m/s²) | 300 (malfunction within 1ms) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Suspended capacity is large and high, and high accuracy. (Repeated accuracy is good) Microswitch basic type.
