Large cutoff capacity of 15A and high accuracy. (Repeatability is good)
Basic type of micro switch.

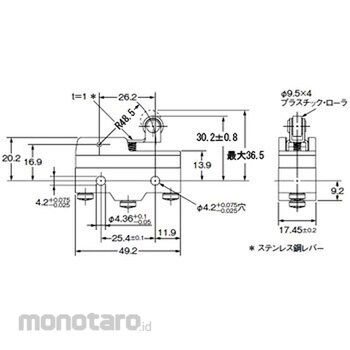

OMRON Basic Switch for General Purpose Z Standard Type Hinge Roller Lever
#Grup produk P105932419
Spesifikasi
| Mechanical Durability | 20 million times or more |
|---|---|
| Lead Wire | VSF |
| Allowable Operating Speed | 0.01mm to 1m/s (value of push button) |
| Allowable Operation Frequency | (Mechanical) 240 times/min, (Electrical) 20 times/min |
| Electrical Durability | 500,000 times or more |
| Electric Shock Protection Class | Class I |
| Actuator Type | Hinge roller lever Type |
| Ambient Humidity to Use | 35-85%RH |
| Applicable Standard | UL, CSA, TUV (EN61058-1) , CCC (GB14048.5) |
| Contact Material | Silver |
| Contact Specifications | rivet |
| Inrush Current (A) | Always (maximum) Closed Circuit/30, Open Circuit/15 |
| Insulation Resistance (MΩ) | 100 or more (with DC500V mega) |
| Operating Force OF (N) | 0.84 max |
| PTI (Proof Tracking Index) | 175 |
| Protection Class | General Type (IP00) |
| Rated Carrying Current (A) | 15 |
| Shock Resistance (Endurance) | Up to 1000m/s <sup>2</sup> |
| Shock Resistance (Mis-operation) | Reference value: Max. 300m/s <sup>2</sup> (Malfunction within 1ms, pin push button Type) |
| Vibration Resistance (Mis-operation) | 10 to 55Hz, double amplitude 1.5mm (malfunction 1ms or less) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Suspended capacity is large and high, and high accuracy. (Repeated accuracy is good) Microswitch basic type.
