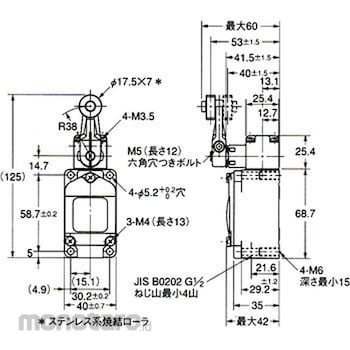

OMRON 2-Circuit Limit Switch WL Environmentally Resistant Type
#Grup produk P105931474
Spesifikasi
| Allowable Operation Frequency | Mechanical: 120 times/min Electrical: 30 times/min |
|---|---|
| Rated Sealed Thermal Current | 10A, 0.5A (EN60947-5-1) |
| Vibration Resistance (Mis-operation) | 10-55Hz, double amplitude 1.5mm |
| Operation Indicator Lamp | Light emitting diode (LED) |
| Ambient Relative Humidity (RH) | 35-95 |
| Shock Resistance Mis Operation (m/s²) | 200 or more |
| Allowable Operating Speed (mm-m/s) | 1 to 1 (for WLCA2) |
| Conditional Short-Circuit Current | 100A (EN60947-5-1) |
| Earth Terminal | None |
| Electric Shock Protection Class | classⅠ |
| Electrical Durability | 1,000,000 times or more |
| Head specifications | (One side operation) ○, (Head mounting) 4 Directions possible |
| Hysteresis Distance (°) | Reference value: MD (maximum) : 12 |
| Inrush Current (A) | Always closed: up to 30 Always open: up to 20 |
| Mechanical Durability | 15 million times or more |
| Operating Force OF (N) | Up to 13.34 |
| Operation | Reference value Movement until operation PT: 15 ± 5 °Movement after operation OT (minimum) : 30 ° |
| Pollution Degree (Environment to Use) | 3 (EN60947-5-1) |
| Return Force (N) | Reference value RF (minimum) : 2.23 |
| Short Circuit Protection Device | 10A fuse gG or gI (IEC269) |
