GC52 Series
- Backlit 3-1/2-digit LCD rotates in 90° increments Process connection: 1/4" NPT female Electrical connection: 1/2" NPT female conduit NEMA 4X (IP65) Epoxy-coated aluminum die-cast housing
Rangeable wet/wet differential pressure transmitters are for applications requiring low differential pressure measurement with static pressure to 300 psi. Push-button configurable ranges. Scaling function. For fluids and gases compatible with 316 stainless steel, Viton®, and alumina ceramic. Wetted materials are 316 stainless steel.
Transducers with Display

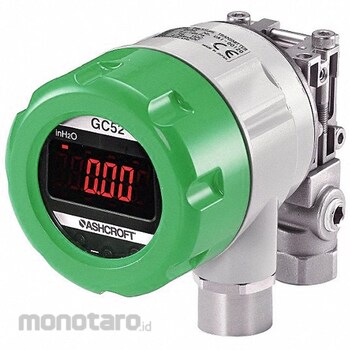

ASHCROFT 3-1/2 Digit Backlit LCD Terminal Board Compound Transmitter
#Grup produk P105926676
Sebelum PPN:
Rp33.999.900 - Rp52.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Transmitter Type | Compound Transmitter |
|---|---|
| Wetted Materials | Transmitters: 316 Stainless Steel |
| Connection Location - Transmitter | Bottom |
| Diameter (inch) | Transmitter: 2.56 |
| Display - Transmitter | 3-1/2 Digit Backlit LCD |
| Electrical Connections - Transmitter | Terminal Board |
| Loop Resistance | Dependent on Loop Supply Voltage |
| Operating Temperature (°F) | Transmitter: 14 to 140 |
| Output (mA) | Transmitter: 4 to 20 DC |
| Power Required | Transmitters: 12 to 32V DC |
| Process Connection Size (inch) | Transmitter: 1/4 |
| Process Connection Type | FNPT |
| Shape | Transmitter: Irregular |
| Wiring Entry | Transmitters: 1/2 in FNPT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Push Button Configuration, Rotatable Display, IP65 RatingUlasan Produk
