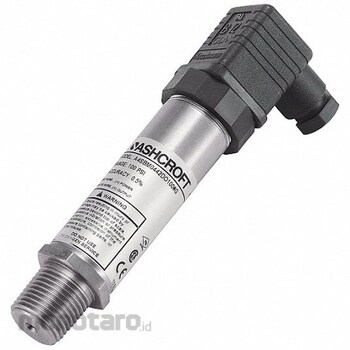

ASHCROFT 1/2inch MNPT Intrinsically Safe Compound Transmitter
#Grup produk P105926092
Spesifikasi
| Transmitter Type | Intrinsically Safe Compound Transmitter |
|---|---|
| Wetted Materials | Transmitters: 316L Stainless Steel |
| Range Values | Transmitter: 30 to 0 to 15 |
| Range Units | in Hg/psi |
| Accuracy - Transmitter | +/-0.25% |
| Compatible With | Any Process Compatible with 316 Stainless Steel |
| Electrical Connections - Transmitter | 4 Pin Hirschmann Style A DIN 43650-A Connector |
| Housing | 304 Stainless Steel |
| Loop Resistance | Dependent on Loop Supply Voltage |
| Maximum Pressure (psi) | 30 |
| NEMA Rating | 4X |
| Operating Temperature (°F) | Transmitter: -40 to 257 |
| Output (mA) | Transmitter: 4 to 20 DC |
| Power Required | Transmitters: 12 to 30V DC |
| Process Connection Size (inch) | Transmitter: 1/2 |
| Process Connection Type | MNPT |
| Safety Rating | Transmitter: Class I, II and III, Div. 1 and 2, Groups A, B, C, D, F, G |
| Thermal Error | +/-2% (-4 Degrees to 185 Degrees F) |
| Wiring Entry | Transmitters: 1/2 in FNPT |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
This intrinsically safe compound transmitter is digitally compensated and suitable for any process compatible with 316 stainless steel.
