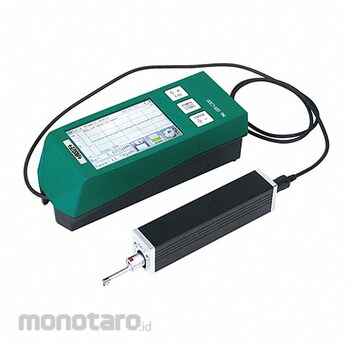

Insize Surface Roughness Tester USB Bluetooth
#Grup produk P105917820
Spesifikasi
| Operating Temperature (°C) | -20 to 40 (-4°F to 104°F) |
|---|---|
| Power Supply | Battery |
| Parameters Measured | Ra, Rz, Rq, Rv, Rp, Rs, R3z, R3y, Rt, Rc, Rz (JIS), Rk, Rku, Rsm, Rpc, Rpk, Rvk, Rsk, Mr1, Mr2, Ry, Rmax |
| Operating Position | Horizontal, Vertical |
| Data Output Connection Type | USB, Bluetooth |
| Detector Measuring Force (mN) | 4 |
| Dimensions - Display Unit (inch) | 6.22x2.52x2.05 |
| Dimensions - Drive Unit (inch) | 6.22x2.52x2.05 |
| Display Functions | Analysis Graph, Language Selection, Standard Selection, Print & Export Data, Save Data, Select Sampling Length |
| Drive Unit Principle | Traverse |
| Measuring Range (micron-inch) | 689 to 12598 , 6299 to 6299 |
| Measuring Range (mm) | 0.32 |
| Measuring Range Ra (micronm) | 0.005 to 30 micronm |
| Measuring Range Rz (micronm) | 0.02 to 320 micronm |
| Number of Sampling Spans | 1, 2, 3, 4, 5 |
| Probe Positions | Axial |
| Probe Sensor Type | Inductive |
| Probe Tip Radius | 5 um |
| Profile Resolution (micron-inch) | 0.01 |
| Sampling Length (inch) | 0.010, 0.030, 0.100 |
