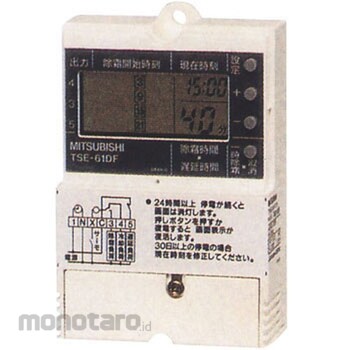

Mitsubishi Electric Time Switch Tse-61D Series
#Grup produk P105914264
Sebelum PPN:
Rp1.399.900 - Rp2.099.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Voltage Range (V) | AC85 to 220 |
|---|---|
| Time Setting Unit | 1 minute |
| Blackout compensation time | Setting contents: 10 years (+20 degreesC, blackout rate 50% or less), current time: 500 days, screen display: 24 hours (however, press the button to redisplay) |
| Frequency (Hz) | For both 50-60 |
| Mass (kg) | 0.2 |
| Accuracy | (Switch) +/-1 second Power recovery 3 seconds or less, (clock) +/-15 seconds/month (at ambient temperature +20 degreesC) |
| Color | Milky white (natural resin color) |
| Compatible Wire (mm²) | IV2, peeling length 9mm |
| Compatible crimp terminal | Round JST V2-M3 |
| Control cycle | 24hours |
| Display | (Time) LCD digital display |
| Mounting Method | Surface mount |
| Operating Ambient Temperature (°C) | -10 to 50 |
| Power Consumption (V/A) | (AC100V) 1 or less, (AC200V) 4 or less |
| Rated Voltage (V) | AC100-200 |
| Switch capacity | (AC resistance load) AC200V 7.5A, (electrothermal load) AC100V 750W, AC200V 1500W, (motor load) AC100V 200W, AC200V 400W |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Compact, thin, large and easy-to-read liquid crystal display.AC100-200V 50-60Hz For both voltage and frequency.
The defrost start time is a 24-hour display and is selected every hour on the hour.
During operation, you can check the switch status, defrost start time, defrost time, and current time at a glance.
You can defrost finely. The defrosting time can be set in 1 minute increments from 1 to 99 minutes, and the delay time (TSE-61DF only) can be set in 0.5 minute increments from 0.5 to 9.5 minutes.
The "temporary defrost/cancel" button allows for forced defrosting and forced termination.
You can reduce the trouble of construction and inventory management.
Use
Defrost only product.Defrosting time switch for frozen/refrigerated showcases
