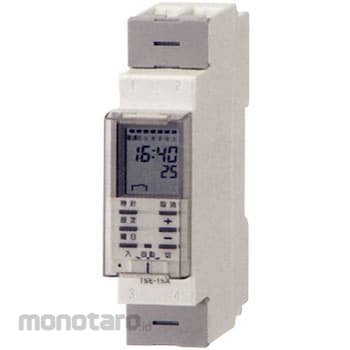

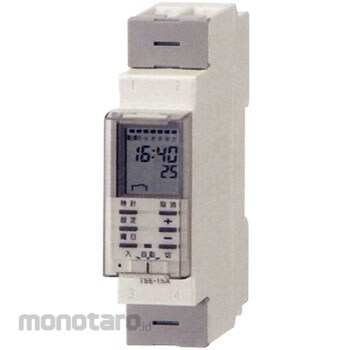

Mitsubishi Electric Time Switch Tse-1 Series
#Grup produk P105914200
Sebelum PPN:
Rp2.499.900 - Rp2.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Rated Voltage (V) | AC100-220 |
|---|---|
| Blackout compensation time | Setting contents, current time: 10 years (+20 degreesC, blackout rate 50% or less), display: 1 hour (However, it is redisplayed by pressing the button) |
| Switch capacity | (AC resistance load) AC250V 8A, (incandescent lamp load) AC100V 300W, (motor load) AC100V 200W, AC200V 400W |
| Switch configuration | 1a |
| Mounting Method | (Surface) IEC35mm rail |
| Compatible crimp terminal | Round JST V2-4 to V5.5-S4 |
| Accuracy | (Switch change) +/-1 second, (clock) +/-15 seconds/month (at ambient temperature +20 degreesC) |
| Allowable Voltage Range (V) | AC85 to 240 |
| Color | Ivory |
| Compatible Wire (mm²) | IV2 (maximum 5.5), peeling length 10mm |
| Display | (Time) LCD digital display |
| Frequency (Hz) | For both 50-60 |
| Life-+span | (Mechanical) 5 million times, (Electrical) 50,000 times/AC250V 8A: Resistive load |
| Mass (kg) | 0.2 |
| Operating Ambient Temperature (°C) | -10 to 50 |
| Power Consumption (V/A) | (AC100V) 1 or less, (AC200V) 4 or less |
| Time Setting Unit | 1 second |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
It can be set with three keys.Manual control or automatic control can be selected. (Slide switch method) With manual control, both temporary on/off control and continuous on/off control can be supported depending on the operation method.
Since a program for each second can be set up, for example, a buzzer or siren for 5 seconds can be controlled. (Up to 10 times/day).
The external dimensions are the agreement type (JIS C 8201-2-1) 1P (25 mm) size for distribution boards, so it can be easily incorporated into distribution boards. It can also be mounted on the IEC35mm rail of the control panel.
The TSE-1SA type allows weekly control by the skip-di system. Even with the skip-day method, daytime operation (ON in the evening -> OFF in the morning) is possible.
