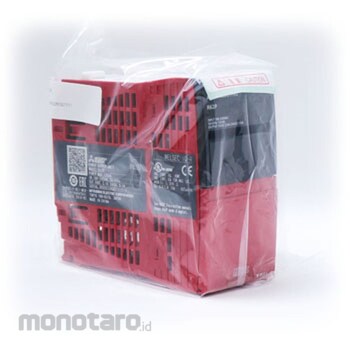

Mitsubishi Electric Melsec Iq-R Series Power Supply Module
#Grup produk P105908962
Sebelum PPN:
Rp3.699.900 - Rp5.399.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Overvoltage Protection | 5.5 to 6.5V(DC5V) |
|---|---|
| External dimensions (Height H x Width W x Depth D) (mm) | 106x54.6x110 |
| Efficiency | 76% or more |
| Fuse | Built-in (not user replaceable) |
| Distortion rate (%) | Input voltage within 5% |
| Input Frequency (Hz) | 50/60 |
| Input Power | AC100 to 240V(AC85 to 264V) |
| Inrush Current (A) | 20 (within 8 ms) |
| Insulation Resistance | Between input/LG and output/FG, between input and LG, between output and FG: DC500V 10M ohm or more with insulation resistance tester |
| Output Contact | ERR contact |
| Withstand Voltage | AC2300Vrms/1min (elevation 0 to 2000m), between input/LG batch and output/FG batch |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Ulasan Produk
Tidak ada ulasan
