Mitsubishi Electric Melsec Iq-R Series Input/Output Mixed Unit
#Grup produk P105908908
Spesifikasi
| Mass (kg) | 0.13 |
|---|---|
| Input resistance | 5.3k ohm |
| Common connection (point) | 32 points 1 common |

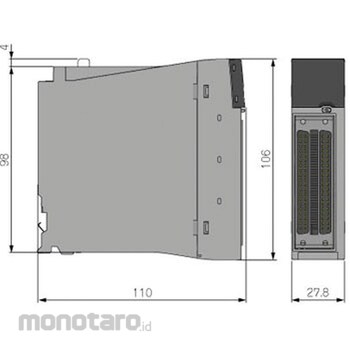

| External dimensions (Height H x Width W x Depth D) (mm) | 106x27.8x110 |
| Number of Input Points | 32 points |
| Current Consumption (A) | 0.22 (DC5V inside) |
| Wiring Method | 40-pin connector x 2 |
| Compatible connector | A6CON1, A6CON2, A6CON3, A6CON4 (sold separately) |
| Degree of Protection | IP2X |
| Fuse | None |
| I/O occupied points | 32 points (I/O allocation: 32 points of mixed input/output) |
| Input Format | DC input (plus common/negative common common type) |
| Input Voltage (V) | DC24 (Ripple ratio within 5%) (Allowable voltage range DC20.4 to 28.8V) |
| Insulation Resistance | 10 M ohm or more with insulation resistance tester |
| Maximum Load Current (mA) | 0.2A/point, 2A/common |
| Output Format | Transistor output (sink type) |
| Output Points | 32 points |
| Rated Load Voltage (V) | DC12/24 (Allowable voltage range DC10.2 to 28.8V) |
| Response Time | Input: [OFF->ON] 0.1ms/0.2ms/0.4ms/0.6ms/1ms/5ms/10ms/20ms/70ms, [ON->OFF] 0.2ms/0.3ms/0.5ms/0.7ms/1ms/5ms/ 10ms/20ms/70ms. Output: [OFF->ON] 0.5ms or less, [ON->OFF] 1ms or less (rated load, resistive load) |
| Withstand Voltage | AC510Vrms for 1 minute |
