Mitsubishi Electric Mechanical Indicating Instrument, Instrument With Changeover Switch Ac Ammeter
#Grup produk P105908403
Sebelum PPN:
Rp1.199.900 - Rp1.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Humidity (%RH) | Relative humidity 30 to 70 does not adversely affect the instructions |
|---|---|
| Scale Plate | (Ground color) white |
| Frequency (Hz) | 50/60 shared |
| Cover | Black (Munsell N1.5 half gloss), no red pointer |
| Accessories | Mounting screw nut |
| Class | 2.5 |
| Cover Material | Acrylic resin (antistatic treated) |

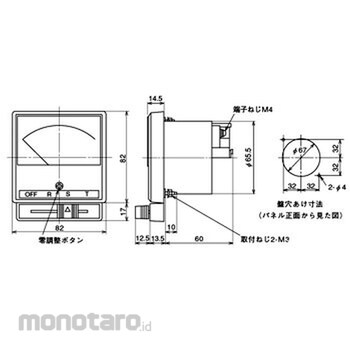

| Dimensions (mm) | 82x99 |
| Insulation Resistance (MΩ) | 10 or more (between electric circuit and outer box) |
| Mass (kg) | 0.2 |
| Mounting posture | Vertical (meaning that the scale plate is vertical to the horizontal plane) |
| Operating Principle | Movable iron piece |
| Operating Temperature Range (°C) | -5 to 50 (Standard 23) |
| Power Consumption (V/A) | 1.5 |
| Scale (mm) | 70 |
| Standard | Direct acting indicator electric meter JIS C1102-2, JIS C1102-3, JIS C1102-4, JIS C1102-5, JIS C1102-7 |
| format | YR-8UNAA |
