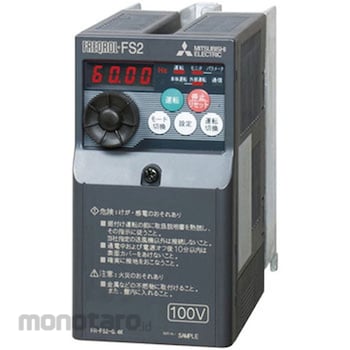

Mitsubishi Electric Inverter For Ventilation Fan Freqrol-Fs2 Series (Single Phase 100V)
#Grup produk P105903958
Spesifikasi
| Control System | High carrier frequency PWM control (V/F control) |
|---|---|
| Mass (kg) | 0.9 |
| Output rated capacity (kVA) | 0.4 |
| Output Frequency | 0 to 60Hz, operating frequency 22 to 60Hz |
| Power Supply Capacity (kVA) | 0.6 |
| Protective structure (JEM1030) | Closed type (IP20) |
| Rated Voltage (V) | Single phase 100 |
| Cooling Method | Self cooling |
| Rated Current (A) | 4 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Since the parameters have been set for the ventilation fan from the factory, no complicated initial settings are required.No parameter setting is required even when combined with an electric shutter (system member)
/The fan is linked immediately to the frequency change by the "M dial", so it is easy to adjust the air volume.
High carrier frequency PWM control, low noise comparable to commercial power supply drive
Equipped with substantial protection functions (electronic thermal, etc.)
DC reactor FR-HEL for power supply harmonic suppression can be connected
Frequency jump (3 points) that avoids resonance frequency is possible
Supports various input/output
Equipped with PID control for easy control of air volume/temperature
Easy-to-read Japanese display
Use
For Mitsubishi ventilation blowerUlasan Produk
