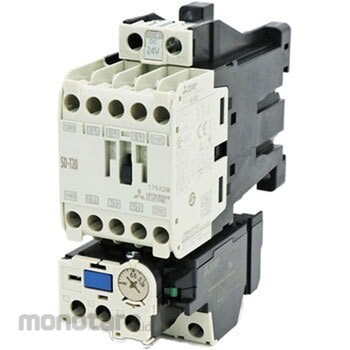

Mitsubishi Electric Electromagnetic Switch Msod-T Series
#Grup produk P105901756
Spesifikasi
| Type | electromagnetic switch |
|---|---|
| Width (mm) | 45 |
| Mass (kg) | 0.53 |
| Mounting Method | Screws, DIN rail |
| Compatible Motor Capacity (200-240V) (kW) | Three-phase squirrel-cage motor (AC-3 class): 3.7 |
| Length (mm) | 115 |
| Auxiliary Contact | 1a1b |
| Coil Rated Voltage (V) | DC24 |
| Compatible motor capacity (380-440V) (kW) | Three-phase squirrel-cage motor (class AC-3): 7.5 |
| Compatible motor capacity (500-550V) (kW) | Three-phase squirrel-cage motor (class AC-3): 7.5 |
| Electrical Durability | 200 (1) million times |
| Mechanical Durability | 10 million times |
| Open thermal Current (A) | 20 |
| Open/close frequency (times/hour) | 1800 |
| Operating Method | Irreversible |
| Rated operating current (A) | Three-phase squirrel-cage motor (AC-3 class): (200 to 220V) 18/(380 to 440V) 18/(500 to 550V) 17, Resistive load (AC-1 class): (200 to 240V) 20/( 380 to 440V) 13 |
| Rated operating voltage (V) | 200 |
| Thickness (mm) | 101 |
| flame | T20 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
The miniaturization of the electromagnetic contactor enables miniaturization of the electromagnetic switch with many ratings. We will make your board smaller.Equipped with a terminal cover as standard. Properly protect the motor with a thermal relay.
It is a method of directly applying the full voltage dedicated to direct current, and the current is limited only by the resistance of the coil, so there is no inrush current and operation is stable.
