Mitsubishi Electric Analog Input Board
#Grup produk P105897833
Spesifikasi
| Resolution | (Voltage input) 2.5 mV (10 V x 1/4000), (Current input) 8 microA (16 mA x 1/2000) |
|---|---|
| Applicable Models | (Sequencer) FX3S, FX3G (V1.10 or later). *When connecting FX3S, the function expansion board and FX3S-CNV-ADP cannot be used together. |
| Analog input range | (Voltage input) DC0 to 10V (Input resistance 198.7k ohm), (Current input) DC4 to 20m. A (Input resistance 250k ohm) |
| Insulation Method | Non-isolated between analog input section and PLC, and between each channel |
| Digital output | (Voltage input) 12bit binary, (Current input) 11bit binary |
| Number of Channels | (Input) 2 |
| Conversion Time (μs) | (A/D) 180 (Data is updated every calculation cycle) |
| Input characteristics | Voltage input and current input can be used together. Input characteristics cannot be adjusted. |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature

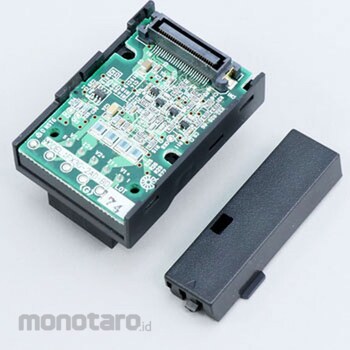

FX3S, FX3G (V1.10 or later) This is a 2-channel analog input board that can be built into the PLC.The built-in PLC type eliminates the need for a mounting location.
The voltage input and current input can be mixed and used.
