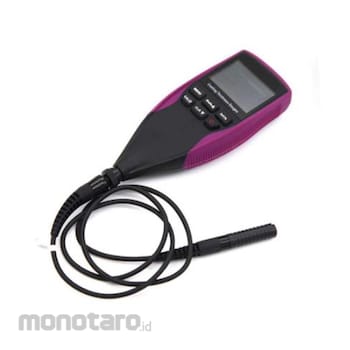

B-ONE Digital Thickness Gauge
#Grup produk P105889773
Spesifikasi
| Measurement Range (µm) | 0 to 1250 |
|---|---|
| Graduation | 0.1um/mil |
| Resolution | 0.1um/mil |
| Accuracy | ±2% ±2μm/0.1mil |
| Display | TFT 320x240 LCD |
| Minimum Test Surface (mm) | Dia. 8 |
| Minimum Thickness of Base Material (mm) | 0.4 |
| Operating Condition Temperature (°C) | 0-40 |
| Operation Condition Humidity | 20%-90% RH |
| Product Size(mm) | 166x68x30 |
| Test Limit Surface Curvature (mm) | Convex: 1.5/ Concave: 7 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Coating Thickness Gauge is a highly intelligent and precise instrument used to quickly and accurately measure thickness of coating or plating on almost all kinds of metal surface. It not only indicates thickness or plating but also automatically identifies the base material. It is applicable to measure non-magnetic painting, ceramic, enamel, plastic, rubber coating on magnetic base material such iron and steel, non ferrous metal plating such as nickel & chromium, anti corrisive coating, non conductive painting, plastic coating and anodic oxide film on non magnetic conductive devices.
Feature
Function :Measuring continuous and single measurement available
Display : Simultaneously display Measuring Value, Average Value, Maximum Value, Minimum Value and Standard Deviation
Memory : 50 data store
Unit : Metric/Imperial switchable (mil/um selectable)
Backlight : Brightness adjustable, clear and easy reading under any light condition
Alarm : Set higher and lower alarm range for measuring
Calibration : Zero-in, 2 points calibration and multi-point calibration selectable
Battery : Low battery indication
Language : English
Data Delete : delete a single data or clear all data
