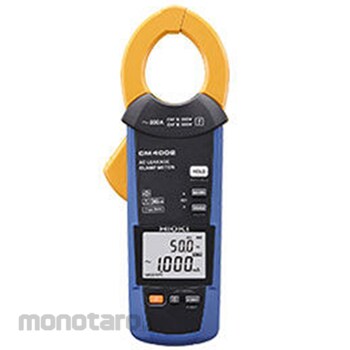

Hioki AC Leakage Clamp Tester
#Grup produk P105858454
Kondisi Barang:
Sebelum PPN:
Rp9.999.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Frequency Range (Hz) | 15.0 to 2000 |
|---|---|
| AC Current Range | 6.000 mA, 60.00 mA, 600.0 mA, 6.000 A, 60.00 A, 200.0 A, 6 ranges, True RMS; Defined accuracy range: 0.060 mA to 200.0 A |
| Clamp Diameter (mm) | φ 40 (1.57 in.) |
| Accessories | Connection Cable L9097x1, USB Cablex1, Carrying case C0203x1, Instruction manualx1, Operating Precautionsx1, AA-size alkaline battery (LR6)x2 |
| Crest Factor | 3 (other than 200.0A range), 1.5 (200.0A range) |
| Display | Display refresh rate: 5 times/s |
| Filter Function | Cut off frequency: 180 Hz ±30 Hz at filter ON (-3 dB) |
| Other Functions | Max/ Min/ AVG/ PEAK MAX/ PEAK MIN value display, Display value hold and auto hold; Backlight, Auto power save, Buzzer sound, Event count display, Comparator, Simple event recording, Rush current measurement |
| Output Function | RMS (RMS value output), WAVE (waveform output) |
| Power Supply | - AA-size alkaline battery (LR6)x2; Continuous operating time: 48 hr. (without Z3210 installed), 30 hr. (with Z3210 installed and using wireless communications); AC Adapter Z1013 (5 V DC, 2.6 A) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Prevent unexpected downtime! Identify potential problems in the field.
Feature
- Equipped with Wireless. Ease of sending measurement data to your smartphone or tablet. (Using Wireless Adapter Z3210)- Ultra-small leakage current detection with the latest sensor (with clamp diameter 40 mm)
- Wide measuring range from leakage current to load current
- Complies with the performance standards set out in IEC/EN 61557-13, the international standard on leak clamp meters
- Quickly troubleshoot GFCI and RCD
- Speed up pass/fail scoring with the built-in CAT IV 300 V CAT III 600 V omparator function
