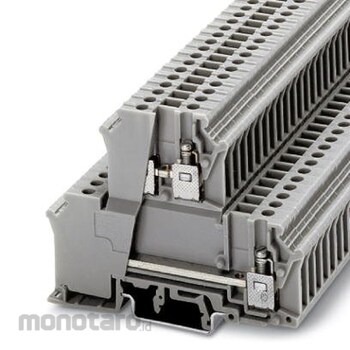

Phoenix Contact Feed-Through Terminal Block UXKK
#Grup produk P105755120
Spesifikasi
| Country of Origin | PL (Poland) |
|---|---|
| Color | Gray |
| Insulating Material | PA |
| Rated Surge Voltage (kV) | 8 |
| Degree of Pollution | 3 |
| Overvoltage Category | III |
| Insulating Material Group | I |
| Nominal Current IN (A) | 32 |
| Nominal Voltage Un (V) | 800 |
| Open Side Panel | No |
| Connection In Acc. With Standard | IEC 60947-7-1 |
| Back of the Hand Protection | Guaranteed |
| Finger Protection | Guaranteed |
| Bending Test Rotation Speed (rpm) | 10 |
| Bending Test Turns | 135 |
| Bending Test Conductor Cross Section per Weight (mm²/kg) | 0.2/0.2 |
| Surge Voltage Test Setpoint (kV) | 9.8 |
| Number of Rows | 2 |
| Maximum Load Current (A) | 32 (with 4 mm² conductor cross section) |
| Part Number | 2780014 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Delivery time on request.Made to Order (non-returnable).
Feature
Feed-through terminal block, connection method: Screw connection, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 6.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32Ulasan Produk
