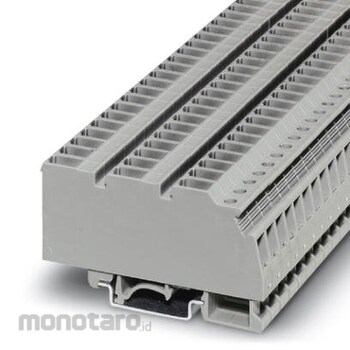

Phoenix Contact Feed-Through Terminal Block UPCV3K
#Grup produk P105754990
Spesifikasi
| Color | Gray |
|---|---|
| Storage/Transport Ambient Temperature (°C) | -25 to 60 (for a short time, not exceeding 24 h, -60 to +70 ) |
| Flammability Rating According To Ul 94 | V0 |
| Number of Rows | 1 |
| Number of Connections | 4 |
| Ambient Temperature for Assembly (°C) | -5 to 70 |
| Insulating Material | PA |
| Insulating Material Group | I |
| Nominal Cross Section Area (mm²) | 4 |
| Operating Ambient Temperature (°C) | -60 (maximum operating temperature see derating curve) |
| Part Number | 1838381 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Feed-through terminal block, nom. voltage: 800 V, nominal current: 20 A, connection method: Screw/plug-in connection, number of connections: 4, number of positions: 1, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 7.6 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32Ulasan Produk
