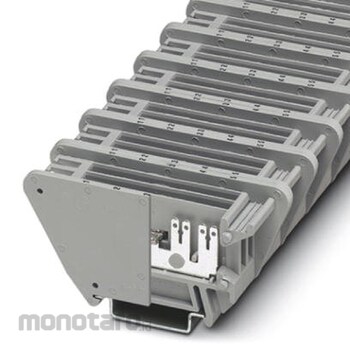

Phoenix Contact Feed-Through Terminal Block PVB
#Grup produk P105754750
Spesifikasi
| Country of Origin | PL (Poland) |
|---|---|
| Color | Gray |
| Insulating Material | PA |
| Rated Surge Voltage (kV) | 8 |
| Degree of Pollution | 3 |
| Overvoltage Category | III |
| Insulating Material Group | I |
| Nominal Current IN (A) | 30 (current data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Nominal Voltage Un (V) | 800 (voltage data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Open Side Panel | No |
| Width (mm) | 23.2 |
| Length (mm) | 80 |
| Number of Positions | 1 |
| Mounting Type | NS 35/7,5 |
| Number of Rows | 1 |
| Number of Connections | 6 |
| Maximum Load Current (A) | 30 (current data for slip-on connections in acc. with EN 61210 are also dependent on nominal size, material, insulation of the sleeve and conductor cross section.) |
| Part Number | 870036 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Warning
Delivery time on request.Made to Order (non-returnable).
Feature
Feed-through terminal block, nom. voltage: 800 V, nominal current: 30 A, connection method: Slip-on connection, number of connections: 6, number of positions: 1, cross section: 0.5 mm² - 6 mm², AWG: 20 - 10, width: 23.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15Ulasan Produk
