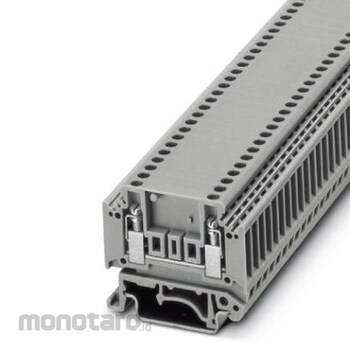

Phoenix Contact Feed-Through Terminal Block MTKD
#Grup produk P105754608
Spesifikasi
| Color | Gray |
|---|---|
| Flammability Rating According To Ul 94 | V0 |
| Number of Rows | 1 |
| Number of Connections | 2 |
| Insulating Material | PA |
| Bending Test Conductor Cross Section/Weight (kg) | 0.2^2 / 0.2 |
| Bending Test Rotation Speed (rpm) | 10 |
| Bending Test Turns | 135 |
| Degree of Pollution | 3 |
| Insulating Material Group | I |
| Nominal Cross Section Area (mm²) | 2.5 |
| Overvoltage Category | III |
| Part Number | 3100017 |
| Rated Surge Voltage (kV) | 6 |
| Result of Flexion And Pull-Out Test | Test passed |
| Result of Tight Fit On Support | Test passed |
| Tensile Test Result | Test passed |
| Tight Fit on Carrier | NS 32/NS 35 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Feed-through terminal block, nom. voltage: 400 V, nominal current: 16 A, connection method: Screw connection, number of connections: 2, number of positions: 1, cross section: 0.2 mm² - 4 mm², AWG: 24 - 12, width: 5.2 mm, color: gray, mounting type: NS 35/7,5, NS 35/15, NS 32Ulasan Produk
