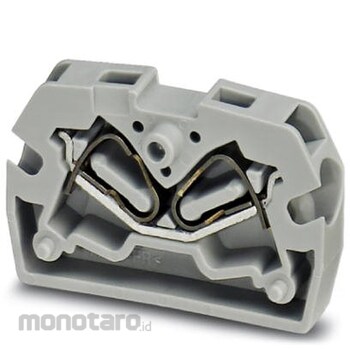

Phoenix Contact Mini Flange Terminal Block
#Grup produk P105747893
Spesifikasi
| Country of Origin | CN (China) |
|---|---|
| Color | Gray |
| Insulating Material | PA |
| Rated Surge Voltage (kV) | 8 |
| Degree of Pollution | 3 |
| Overvoltage Category | III |
| Insulating Material Group | I |
| Nominal Current IN (A) | 24 |
| Nominal Voltage Un (V) | 800 |
| Open Side Panel | Yes |
| Back of the Hand Protection | Guaranteed |
| Finger Protection | Guaranteed |
| Bending Test Rotation Speed (rpm) | 10 |
| Bending Test Turns | 135 |
| Bending Test Conductor Cross Section per Weight (mm²/kg) | 0.08/0.1; 2.5/0.7 |
| Mounting Type | Direct screw connection |
| Number of Rows | 1 |
| Number of Connections | 2 |
| Maximum Load Current (A) | 30 (with 4 mm² conductor cross section) |
| Part Number | 3249059 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
Mini flange terminal block, can be combined with D-MSBV 2,5-F and MSBV 2,5-M, nom. voltage: 800 V, nominal current: 24 A, connection method: Spring-cage connection, number of connections: 2, cross section: 0.08 mm² - 4 mm², AWG: 28 - 12, width: 5.2 mm, height: 20 mm, color: gray, mounting type: direct screw connectionUlasan Produk
