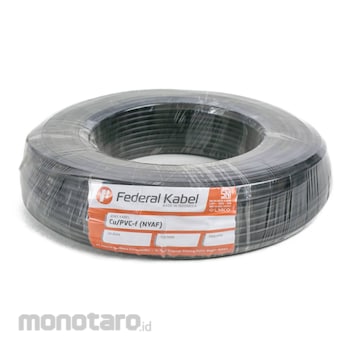

Federal Kabel Flexible Electrical Cable NYAF 300/500V 1x0.5mm² (Kabel)
#Grup produk P105738354
Kondisi Barang:
Bersertifikat SNI
Spesifikasi
| Number of Cores | 1 |
|---|---|
| Current Carrying Capacity (A) | 12 (at 30°C) |
| Conductor Material | Annealed Bunched Copper Wire |
| Insulation Material | PVC |
| Conductor Diameter (Nxmm) | 24x0.2 |
| Core x Size (mm²) | 1x0.5 |
| DC Resistance for Conductor (ohm/km) | Max 24.70 (at 20°C) |
| DC Resistance for Insulation (MΩ.km) | Min 58 (at 20°C) |
| Length (m) | 100 |
| Maximum Operating Temperature (°C) | 70 |
| Nominal Cross Section Area (mm²) | 0.5 |
| Overall Diameter (mm) | 2.45 |
| Short Circuit Current (kA) | 0.09 (per 1sec) |
| Standard | IEC 60227-6 |
| Thickness (mm) | 0.66 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Single core insulated conductor, without sheath, for general purposes. Suitable for fixed protected installation, or on, lighting or control gear for rated voltages up to 300/500 V. Installation in surface mounted or embedded conduits, or similar closed systems.
