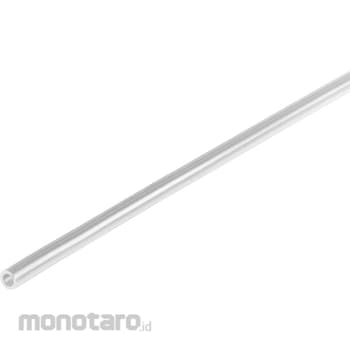

FESTO Plastic Tubing
#Grup produk P105734622
Spesifikasi
| Outside Diameter (mm) | 6 |
|---|---|
| Flow-Relevant Bending Radius (mm) | 32 |
| Inside Diameter (mm) | 4 |
| Min. Bending Radius (mm) | 14 |
| Short Type Code | PAN |
| Tubing Characteristics | Suitable for energy chains in applications with high cycle rates |
| Tubing Test Conditions | Suitable for energy chains: > 5 million cycles to FN 942021 |
| Temperature-Dependent Operating Pressure (bar) | -0.95 ... 19 |
| Approval | German Technical Control Board (TÜV) |
| Maritime Classification | See certificate |
| Certificate Issuing Authority | B 013277 0506 00 |
| Labs-Conformity | VDMA24364-B2-L |
| Ambient Temperature (°C) | -30 ... 80 |
| Product Weight According To Length (kg/m) | 0.016 |
| Colour | Natural |
| Shore Hardness | D 55 +/-3 |
| Note on Materials | Copper/PTFE-free; RoHS-compliant |
| Material Tubing | TPE-A |
| Operating Medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Pneumatic Connection | For push-in connector O.D. 6 mm; For barbed fitting I.D. 4 mm with union nut; For barbed fitting I.D. 4 mm |
