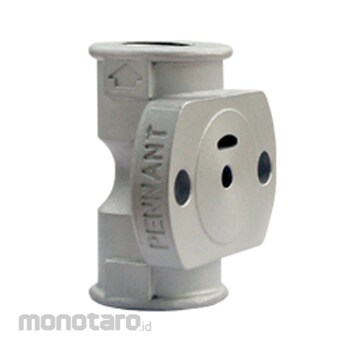

Universal connector (with and without strainer) for use with steam traps. Facilitates quick replacement of traps reducing maintenance costs.
INSTALLATION:
The connector can be installed in horizontal or vertical lines. The connector face must be in a vertical plane. The trap should be fitted to the connector with its cap uppermost. Full-port isolating valves should be
installed upstream and downstream of the connector
MAINTENANCE:
Remove the cap for periodic cleaning of strainer.
IMPORTANT:
While installing connector to pipe, ensure that the connector face is aligned vertically
AVAILABLE SPARES:
Strainer Screen (Packet of 5)
Pennant Steam Accessories PU11
#Grup produk P105733854
Spesifikasi
| Connection | Screwed (NPT/BSPT/BSP) Socket Weld |
|---|---|
| Max. Allowable Pressure (psig) | 600 |
| Maximum Allowable Temperature (°F) | 800 |
| Cold Hydro Test Pressure (psig) | 900 |
| Screwed/SW Ends | 1.21 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
The universal connector, once installed, remains in the pipeline permanently. The trap itself is attached to the connector by two bolts, enabling quick installation and replacement. The connector design facilitates vertical/horizontal installation or any angle in-between regardless of piping configuration.Ulasan Produk
