PG71 sight glasses are designed to check the flow of cooling water, lubricants, air, steam, etc. in a pipe line. They may also be used to check the functioning of steam traps. This simple device is also an effective back-flow
preventer. Suitable for horizontal installation.
USE: Water, oil, steam, air and other non- corrosive media.
INSTALLATION:
The sight glass should be installed in a horizontal pipe line with the glass at the top. Enough space should be left open above the glass to facilitate checking of the flow/operation. In cases where the device is fitted to check the
operation of a steam trap, it should be fitted at a distance of 5 to 6 feet downstream of the trap
AVAILABLE SPARES:
Set of Glass, Ball, Gaskets.

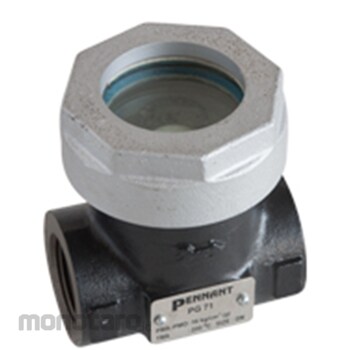

Pennant Steam Accessories PG71
#Grup produk P105733845
Sebelum PPN:
Rp1.399.900 - Rp1.599.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection | Screwed (NPT/BSPT/BSP) |
|---|---|
| Max. Allowable Pressure (psig) | 228 |
| Maximum Allowable Temperature (°F) | 400 |
| Cold Hydro Test Pressure (psig) | 350 |
