PAE10 ball float air eliminator is designed to automatically discharge air/gas present in a liquid system.
INSTALLATION:
Vertical installation with flow from bottom to top. The air eliminator should be installed at all high points of a liquid system wherever air can collect. It should be installed vertically above the pipe or equipment with
inlet at the bottom.
The arrow on the nameplate should be pointing vertically upwards.
AVAILABLE SPARES:
Valve Seat, Ball Float & Lever Assly., Gaskets

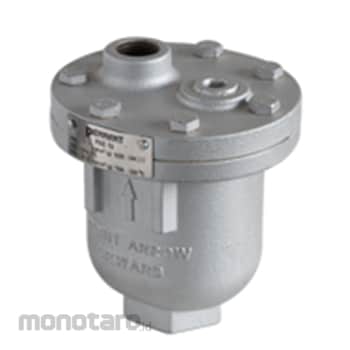

Pennant Air Eliminators PAE10
#Grup produk P105733836
Sebelum PPN:
Rp1.899.900 - Rp2.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Connection | Screwed (NPT/BSPT/BSP) |
|---|---|
| Max. Allowable Pressure (psig) | 300 |
| Maximum Allowable Temperature (°F) | 425 |
| Max. Operating Pressure (psig) | 150, 250, 300 |
| Cold Hydro Test Pressure (psig) | 450 |
