PD65 float traps are designed to drain moisture/liquids from compressed air/gas systems
USE:
Compressed air and non-corrosive gas compatible with the construction.
INSTALLATION:
Horizontal installation with flow from left to right. The trap should be installed below the drain point of the equipment with the flow direction as indicated by the arrow on the trap. It is recommended that an equalizer line be fitted as shown in
the installation manual for this product. The word 'TOP' on the nameplate indicates the top side of the trap.
Max. differential pressure range:
PD65-65 : 65 psi
PD65-145 : 145 psi
PD65-200 : 200 psi
AVAILABLE SPARES:
Valve Seat, Ball Float & Lever Assly., Gaskets.

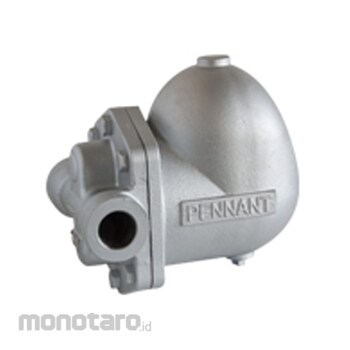

Pennant Liquid Drain Taps PD65
#Grup produk P105733827
Sebelum PPN:
Rp3.799.900 - Rp4.299.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Size (inch) | 1 |
|---|---|
| Connection | Screwed (NPT/BSPT/BSP) |
| Max. Allowable Pressure (psig) | 250 |
| Maximum Allowable Temperature (°F) | 425 |
| Max. Operating Pressure (psig) | 200 |
| Cold Hydro Test Pressure (psig) | 375 |
| Maximum Operating Temperature (°F) | 425 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Modulating dischargeUlasan Produk
